Puffed Snacks Food Production Line

Food Machinery

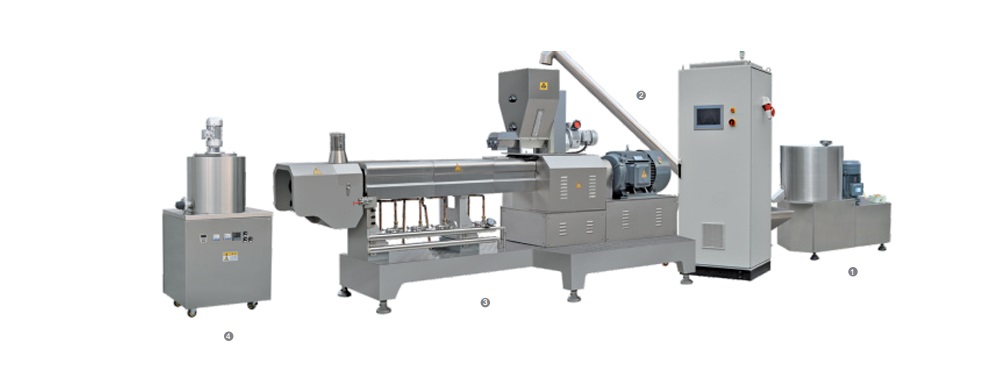

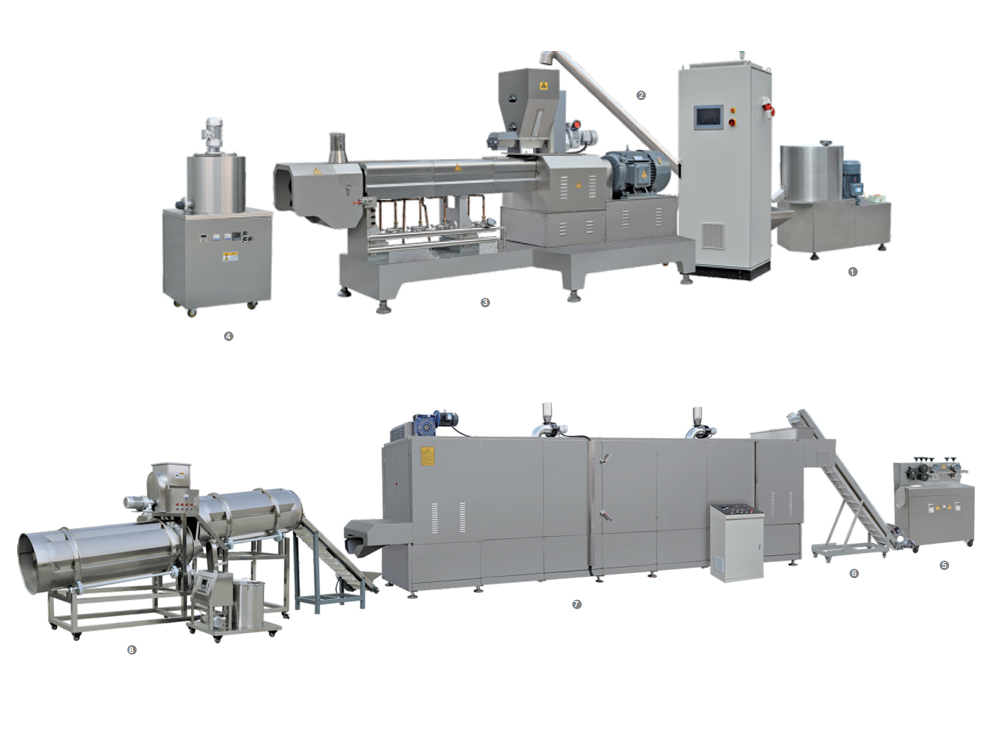

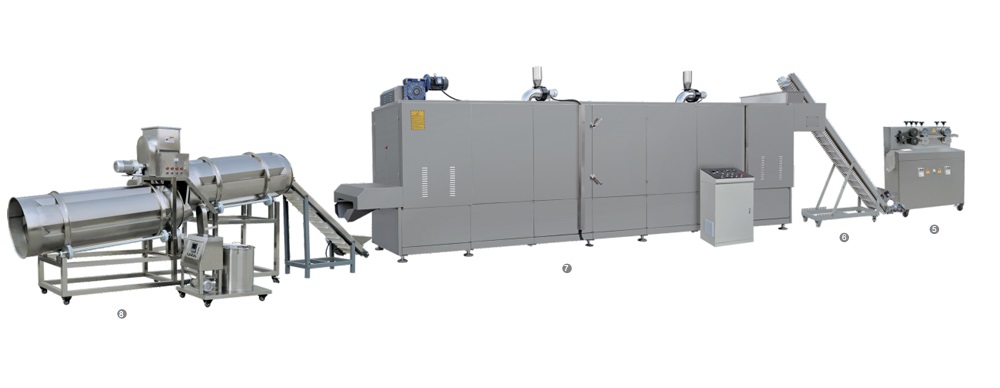

Core Filled Snacks Process Line

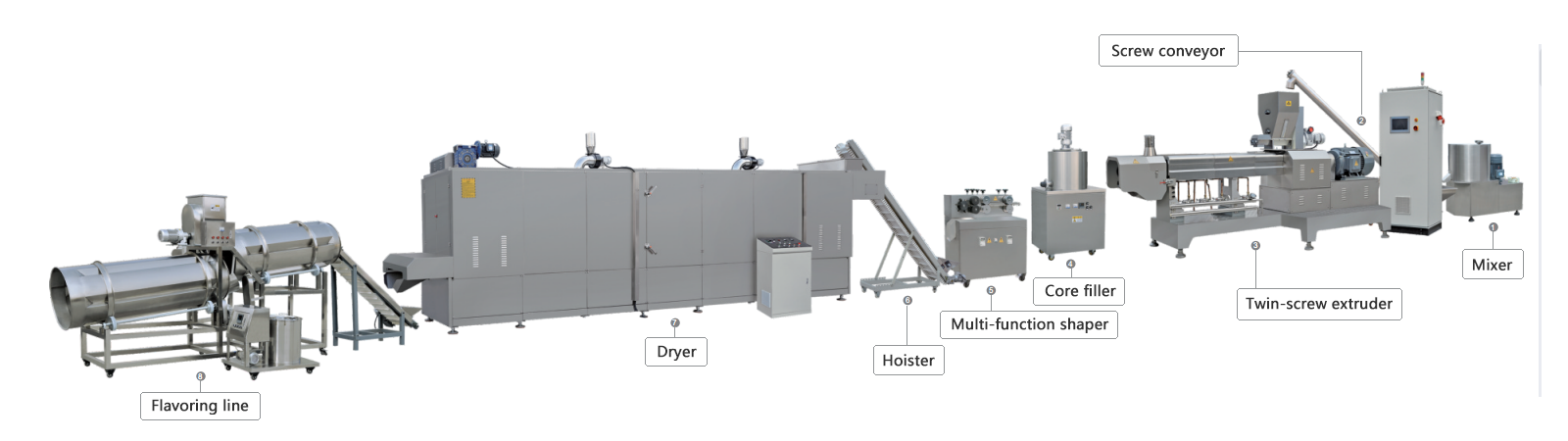

Core Filled Snacks Process Line consists of:

1. Mixer
2. Screw elevator
3. Twin screw extruder
4. Core filler
5. Multi-function shaper
6. Hoist/Hoister
7. Oven/Dryer
8. Flavoring line

Features:

Core Filled Snacks Process Line is capable of performing various tasks such as raw material preparation,

extrusion, core filling, shaping, cutting, coating, and flavoring in a single process. This production line is known

for its advanced technology, rational configuration, high automation, and stable performance.

It has the ability to produce a wide range of inflated food products, including core filling snack food, filled biscuits,

nutrition breakfast, corn flakes, stuff, rice bread, rolling snacks, and more. The products, once puffed, are crispy, easily

digestible, and have a unique taste, making them the perfect choice for leisure food.

Advantages of Core Filled Snacks Process Line:

1. Multiple machine options, flexible and diverse configurations, suitable for a wide range of raw materials,

offering numerous product varieties, and easy to operate.

2. The process line can adjust molds to create various shapes such as balls, tubes, sticks, rings, stars, wheels,

flowers, and heart shapes.

Raw materials of Core Filled Snacks Process Line:

Corn, rice, wheat, oat, barley, etc. as coating, cream, chocolate, fruit paste, date paste, jelly, etc as for filling.

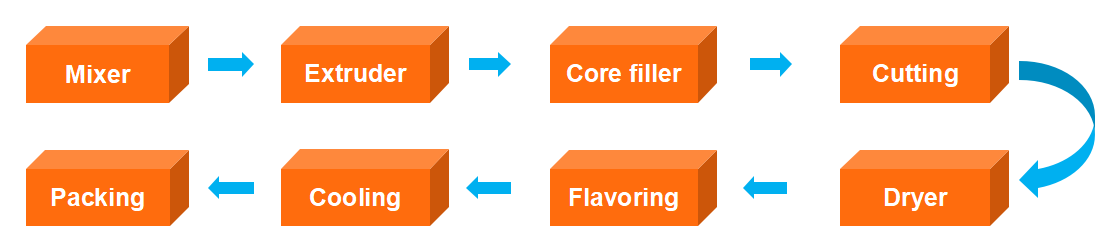

Work Flow of Core Filled Snacks Process Line:

Work Flow of Core Filled Snacks Process Line.jpg

Specification:

Model	HX65	HX70	HX85
Installed Power	74kw	105kw	205kw
Power Consumption	52kw	75kw	150kw
Capacity:	100-150kg/h	200-260kg/h	400-500kg/h
Dimension	17×1.3×2.2m	20×1.5×2.2m	30×1.5×2.6m

Samples:
