Bag types: 3-side seal bag, 4-side seal bag.
Message
1. Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length, and accurate positioning.
2. The temperature controller is adjusted by PID to make the temperature control more accurate.
3. Overall machine movement is controlled by PLC, with the human-machine interface display, ensuring the health of products
4. Packing material： filter paper, thread, composite membrane, and labels.

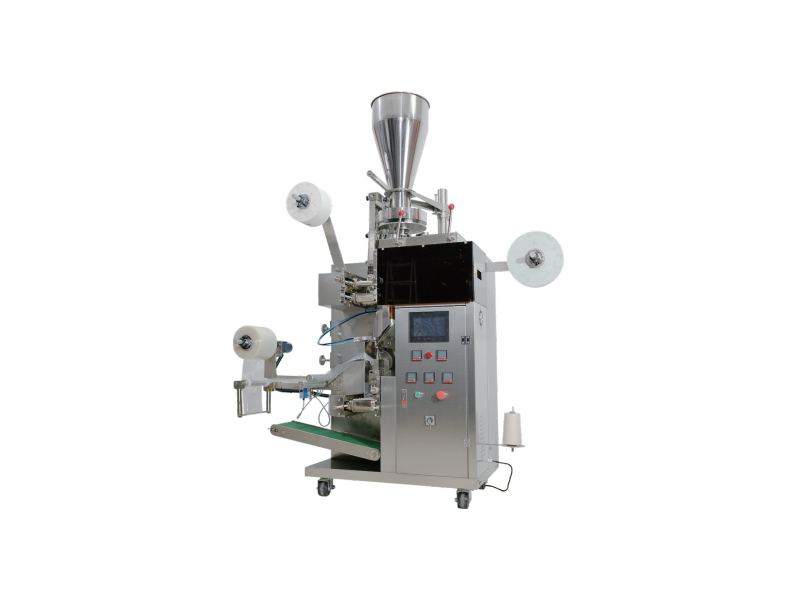

| Model | HX-169 |
|---|---|
| Measuring Scope | 3 - 10 g（ 1.6 ~ 26 ml ） |
| Inner bag size | ( L ): 50 - 70 mm ( W ): 45 - 80 mm |
| Outer bag size( L ) | ( L ): 80 - 120mm ( W ): 75 - 95 mm |
| Packing Speed | 30-40 bags/min |
| Total Power | AC220V/ 50Hz /3.7kw |
| Gas source | ≥0.4m³/min |
| Dimension | ( L*W*H )1750*740*1950mm |
| Weight | 550 kg |
