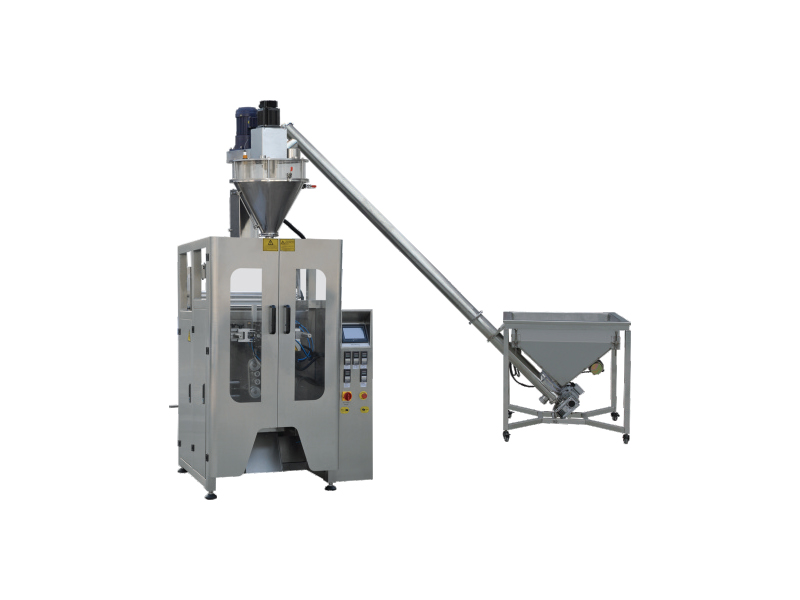

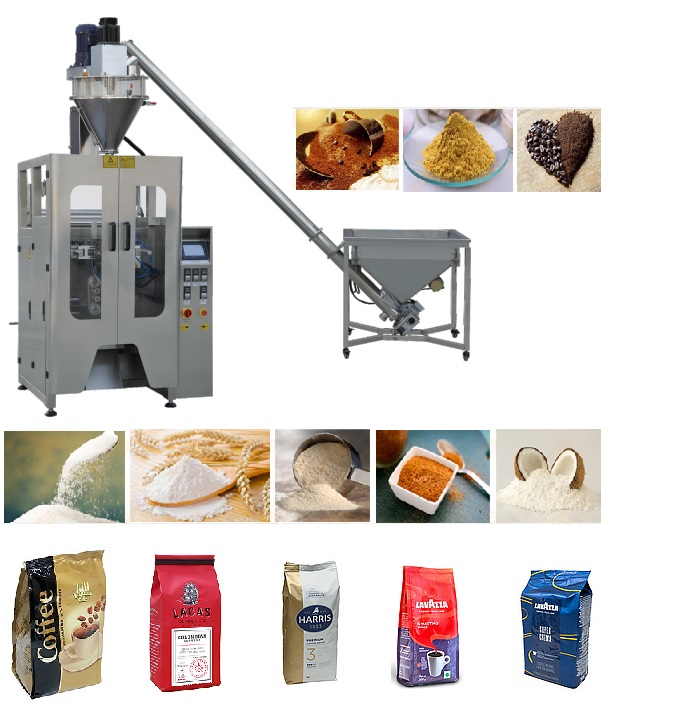

The machine uses rotating screw feeding, an independent material mixing system, servo coding, and PLC control. Featuring swift action, lower noise, stable operation, fast measurement, high accuracy, etc.
Model | HX-520T | HX-720T |
Max. film width | 500mm | 700mm |
Bag front width | 70-180mm | 100-240mm |
Bag side width | 60-90mm | 65-120mm |
Side sealing width | 5-10mm | 5-10mm |
Bag length | 100-350mm | 100-450mm |
Packing speed | 20-50bag/min | 10-30bag/min |
Accuracy | <±1-2 | <±1-2 |
Power specification | 3.0kw/220V,50/60Hz | 3.5kw/220V,50/60Hz |
Air consumption | 0.7m2/min | 0.8m2/min |
Overall Dimension | 3500x2000x3900mm | 3500x2000x4100mm |
Gross weight | 700Kg | 750Kg |
