Granule Packing Machine
Packing Machine

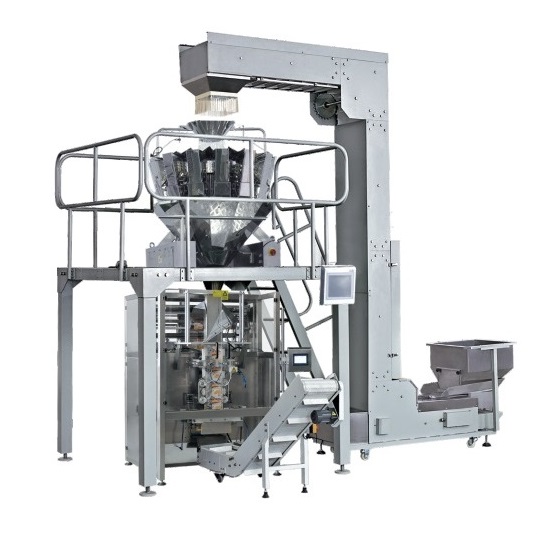

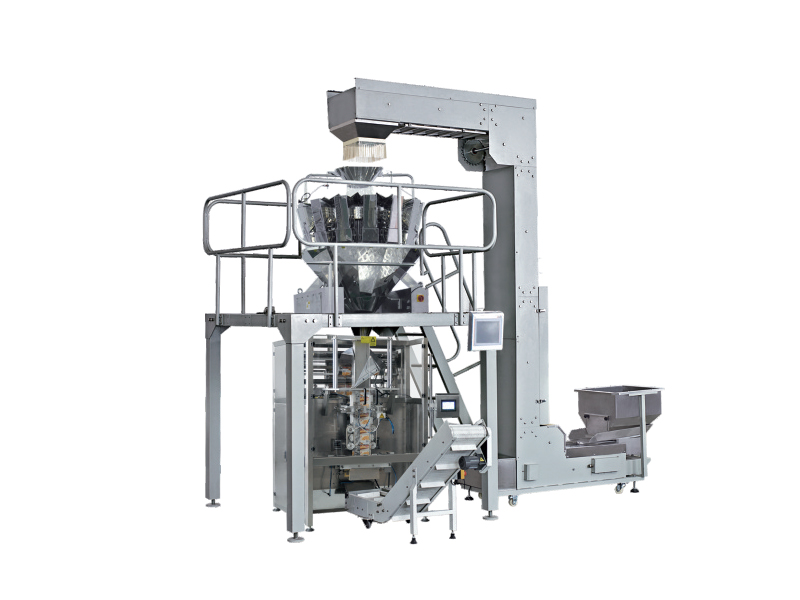

Automatic Vertical Granule Quad Seal Stand-up Bag Packing Machine

Bag Type: Quad Seal Bag, Stand-up Bag.

Message
Features:

1. Automatic complete process of feeding, metering, bag filling, date printing, inflating, exhaust, and finished product conveying.

2. High measuring accuracy, high efficiency, no broken material.

3. This series of packaging machines are developed from general vertical packaging machines by adding 4 edge seals. Making the packaging effect more stereoscopic and attractive.

4. This packaging machine adopts a servo motor that drives the feeding device. The man-machine display uses an advanced touch panel, making the operation easy and convenient.


Automatic Vertical Granule Quad Seal Stand-up Bag Packing Machine -.jpg

Application:
It is suitable for automatic packaging of granular, sheet and strip material such as puffed food, potato chips, shrimp, sweets, peanuts, melon seeds, rice, salt, pet food, etc.
Specification:

Model

HX-520T

HX-720T

Max. film width

500mm

700mm

Bag front width

70-180mm

100-240mm

Bag side width

60-90mm

65-120mm

Side sealing width

5-10mm

5-10mm

Bag length

100-350mm

100-450mm

Packing speed

20-50bag/min

10-30bag/min

Accuracy

<±1-2

<±1-2

Power specification

3.0kw/220V,50/60Hz

3.5kw/220V,50/60Hz

Air consumption

0.7m2/min

0.8m7min

Overall Dimension

3500x2000x3900mm

3500x2000x4100mm

Gross weight

700Kg

750Kg

Samples:
