Powder Packing Machine

Packing Machine

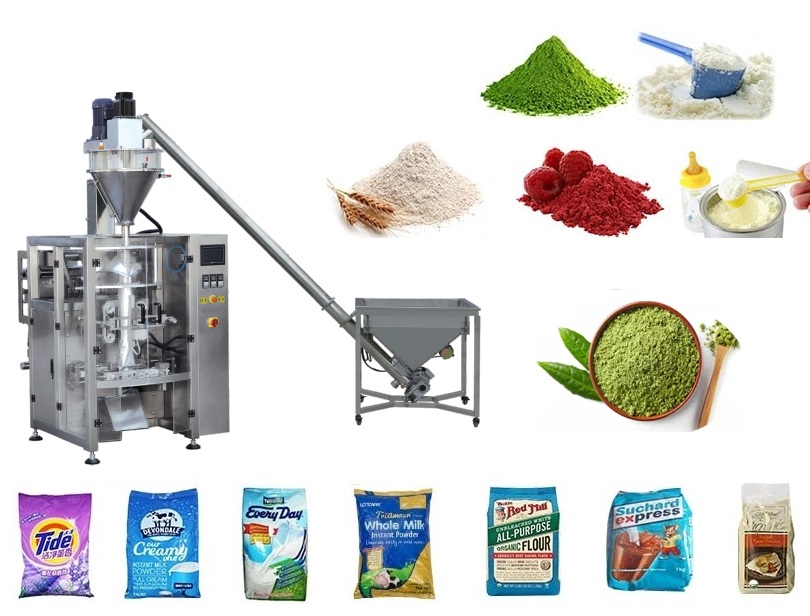

Automatic Vertical Powder Packing Machine

Bag Type: Quad Seal Bag,3 Side Seal Bag, Chain Bag, Back Seal Bag.

Message

Features:
Application:
Specification:
Samples:
Inquiry:

Features:

1. It uses rotating screw feeding, independent material mixing system, servo coding, and PLC control. Featuring swift action, lower noise stable operation, fast measurement, high accuracy, etc.

2. Imported PLC computer controller integrates with LCD touch panel, the manmachine display makes the machine easy operated.

3. Equipped with servo winding system, and pneumatic control system.

4. The maximize to improve the whole machine's precision, reliability, and stability.

5. Use an intellectual temperature controller, the high-temperature control to ensure neat sealing.

6. The perfect automatic alarm safety protection, little waste. This machine completes the whole packing procedure of measuring, feeding, bagging, date printing, gas charging (exhausting), and products out-putting. Counting automatically.

Automatic Vertical Powder Packing Machine (-1).jpg

Application:

Suitable for automatic packaging of loose powder products. Such as milk powder, flour, nutrition powder, etc.

Specification:

Model	HX-420	HX-520	HX-720
Max. bag width	200mm	250mm	350mm
Bag length	50-300mm	80-350mm	100-450mm
Film thickness	0.04-0.08mm	0.04-0.08mm	0.05-0.1 mm
Packing speed	30-60bag/min	30-60bag/min	10-30bag/min
Accuracy	<±1-2	<+1-2	<±2-3
Power specification	3.0kw/220V,50/60Hz	3.5kw/220V,50/60Hz	4.0kw/220V,50/60Hz
Air consumption	0.6m²/min	0.6m²/min	0.7m²/min
Overall dimension	3500x2000x3700mm	3500x2000x3900mm	3500x2000x4100mm
Gross weight	700Kg	750Kg	800Kg

Samples:
