Granule Packing Machine

Packing Machine

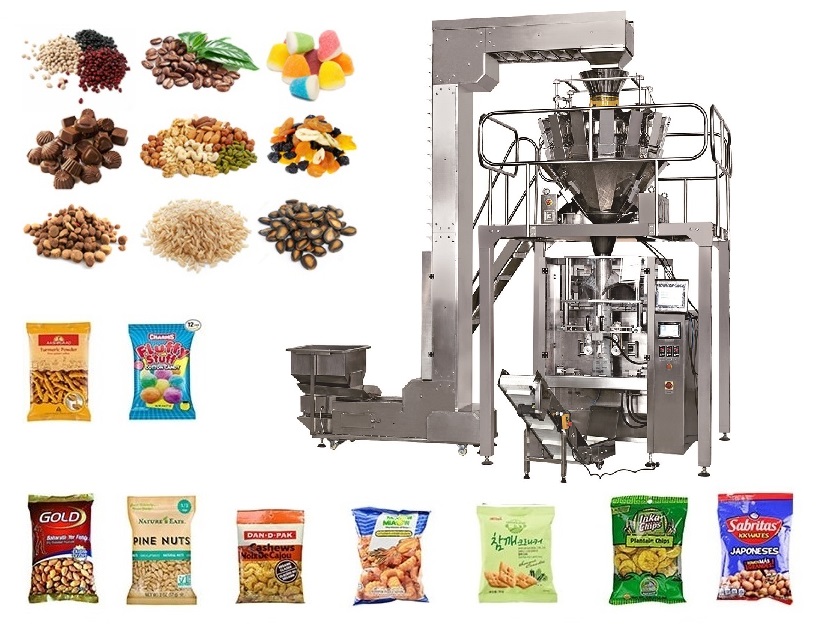

Automatic Vertical Granule Packaging Line

Bag Type: Stand Up Bag, Quad Seal Bag, 3 Side Seal Bag.

Message

Features:
Application:
Specification:
Samples:
Inquiry:

Features:

1. Imported PLC full computer control system, full Chinese/English touch screen operating system, clearly display the working status and operation instructions.

2. High precision servo film transport system, smooth film transport, with the photoelectric automatic positioning tracking system, high positioning accuracy.

3. Intelligent digital temperature control system, stable temperature difference control, with a tooth-shaped sealer to ensure firm sealing.

4. Including automatic fault alarm display function, such as low temperature, no packaging film, no ribbon, no material, servo fault, no color code signal, and automatic alarm or stop function when the glass protection door is opened.

5. The machine can automatically complete the whole packaging process of metering, feeding, bag filling, date printing, and finished product output with the matching of the metering device.

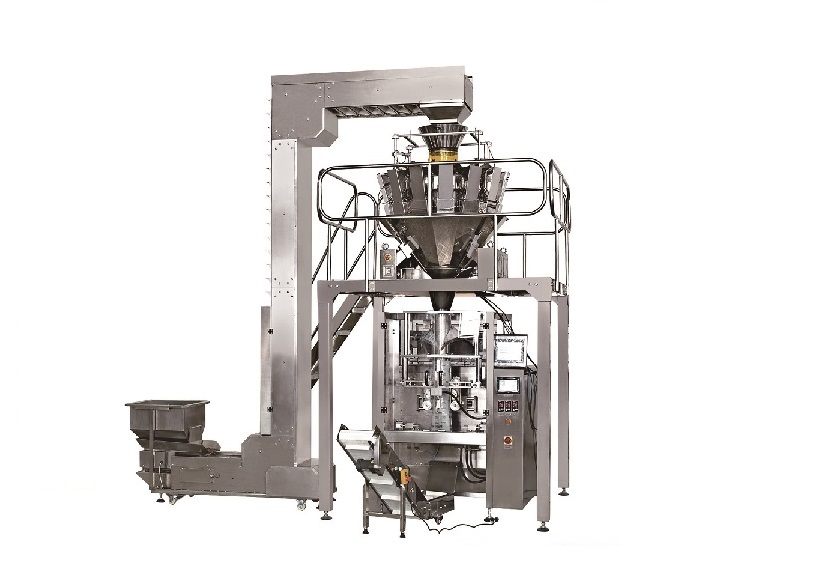

Full Automatic Vertical Granule Packaging Line -.jpg

Application:

Suitable for the packaging of bulk objects requiring high metering accuracy and fragility, such as puffed food, potato chips, potpourri, jelly, candy, pistachios, peanuts, beans, apple slices, dumplings, dumplings, herbs, etc.

Specification:

Model	HX-420	HX-520	HX-720
Max. bag width	200mm	250mm	350mm
Bag length	50-300mm	80-350mm	100-450mm
Film thickness	0.04-0.08mm	0.04-0.08mm	0.05-0.1 mm
Packing speed	30-60bag/min	30-60bag/min	10-30bag/min
Accuracy	<±1-2	<+1-2	<±2-3
Power specification	3.0kw/220V,50/60Hz	3.5kw/220V,50/60Hz	4.0kw/220V,50/60Hz
Air consumption	0.6m²/min	0.6m²/min	0.7m²/min
Overall dimension	3500x2000x3700mm	3500x2000x3900mm	3500x2000x4100mm
Gross weight	700Kg	750Kg	800Kg

Samples:
