Pet Chews Production Line

Food Machinery

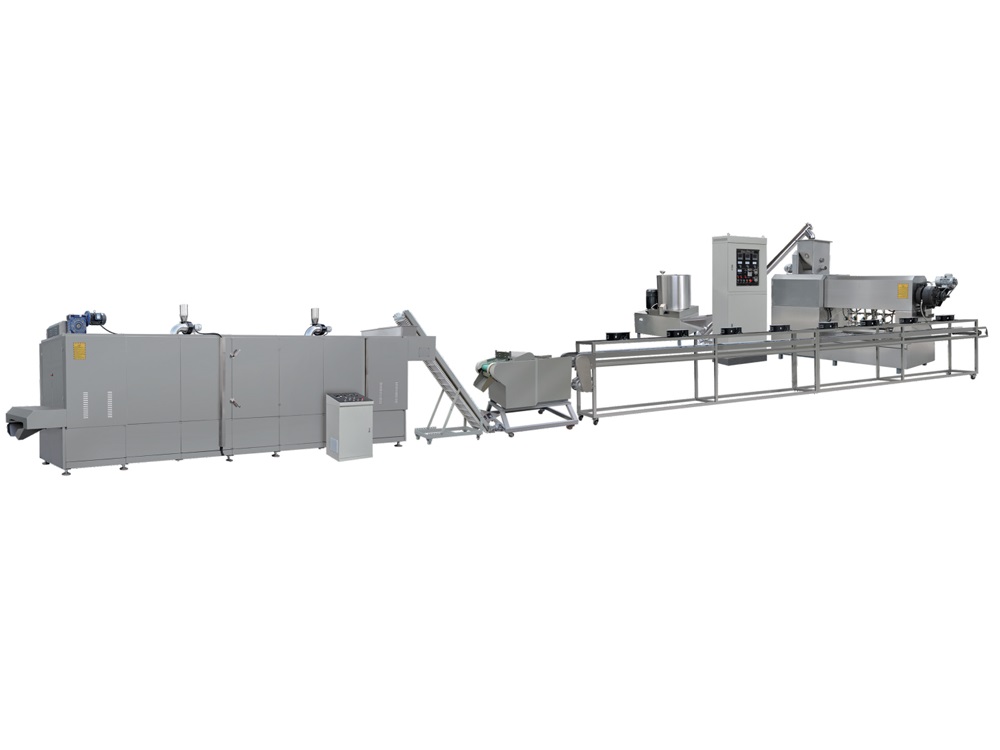

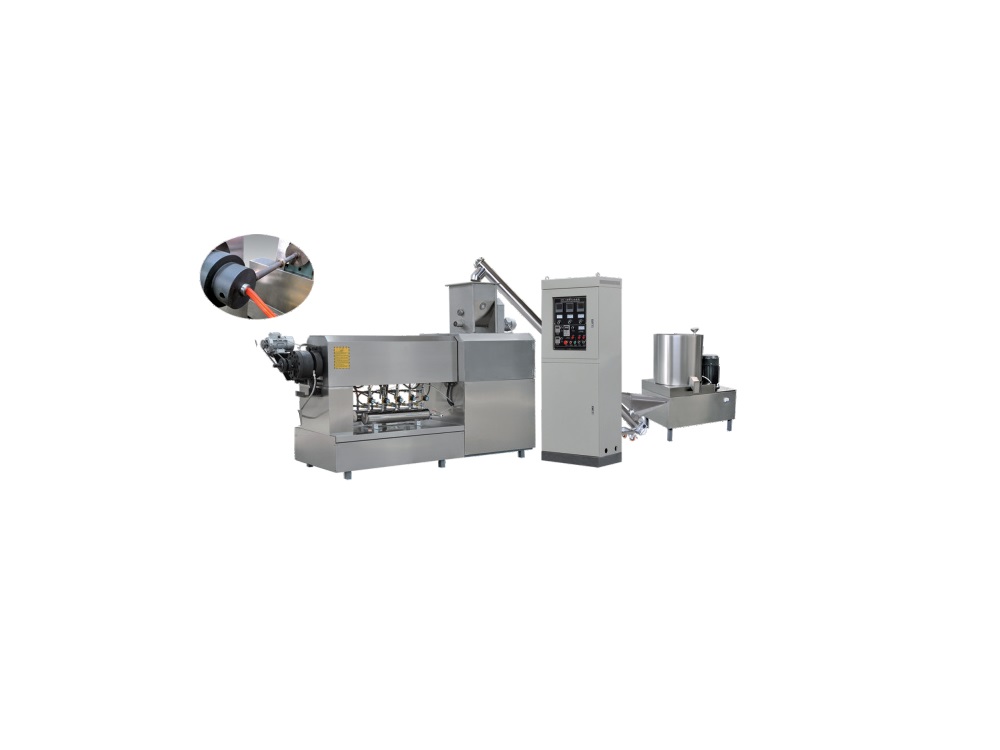

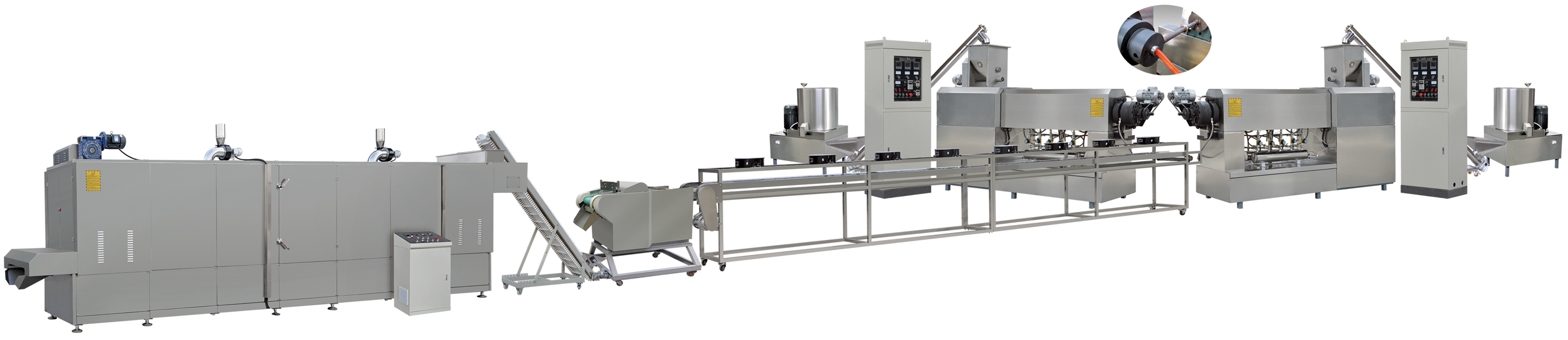

Pet Chews Production Line

The production line consists of :

1. Mixer
2. Screw the elevator
3. Single screw extruder
4. Cooling machine
5. Cutter
6. Hoist/Hoister
7. Oven/Dryer

Message

Features:
Specification:
Samples:
Inquiry:

Features:

Pet chews take starch from many kinds of different materials with scientific configurations and was extruded from a co-extruder, It can be made into different kinds of shapes such as stick, bone, bi-color, bi-flavor, twists, core-filling, etc.
This kind of food not only provide protein, fat, vitamin, and nutrition for dogs but also satisfy the dog nature hobby. It has the following features: strong teeth, a clean mouth, and teeth.

Advantages:

1. The extruder adopts advanced frequency converter speed regulation technology, making equipment strong power, more stable operation, and more electricity saving.
2. The screw adopts an alloy steel nitriding treatment, which longer life of the screw and individual equipment adopts a building block combination structure, which can be arbitrarily combined according to different needs.
3. Visual automatic temperature control system, more intuitive temperature control, more accurate parameters.
4. Water cooling system, more accurate temperature control, better product molding.
5. New high strength Gearbox, made of QT400, good stability; oil filter and oil cooler to extend the life of the gearbox.

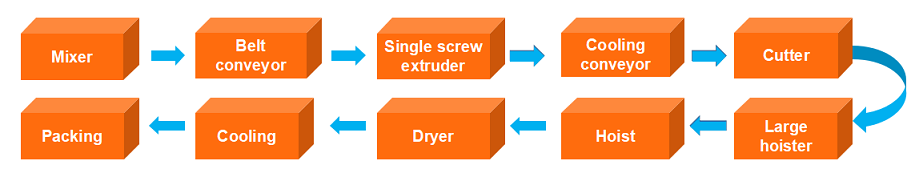

Work Flow:

Work Flow of Pet Chew Processing Line.jpg

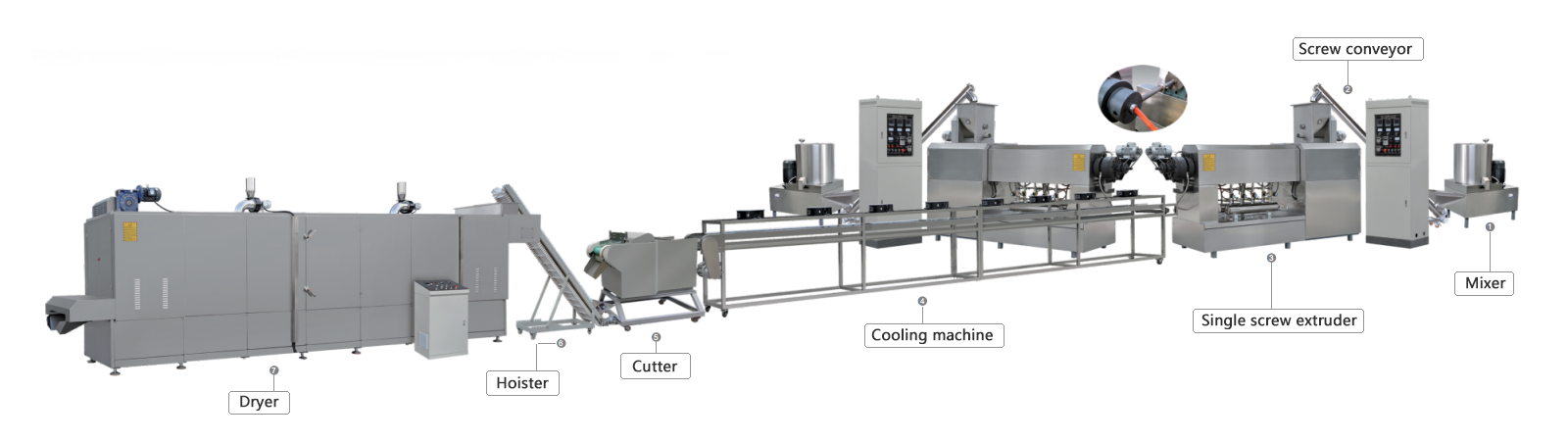

Pet Chews Production Line 1.png

Specification:

Model	HX80	HX100
Installed Power	70kw	100kw
Power Consumption	50kw	70kw
Capacity	80kg/h	100-150kg/h
Dimension	34 × 2.0× 2.2m	42×2.0×2.2m
