Pet Chews Production Line

Food Machinery

Pet Chewing Food Process Line

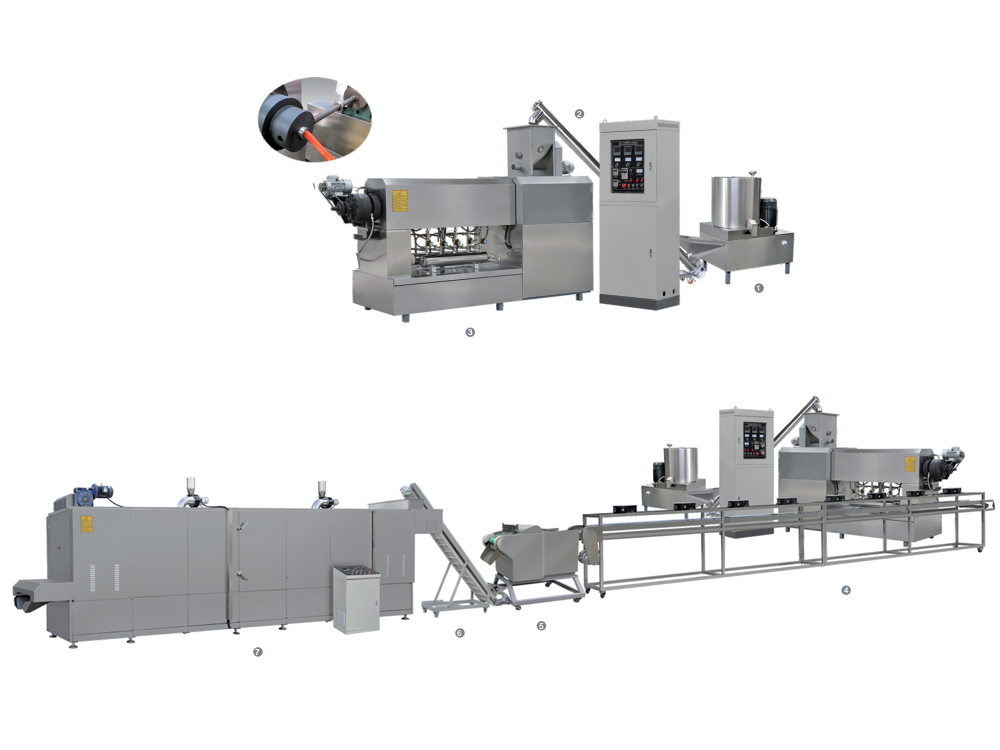

Pet Chewing Food Process Line consists of :

1. Mixer
2. Screw the elevator
3. Single screw extruder
4. Cooling machine
5. Cutter
6. Hoist/Hoister
7. Oven/Dryer

Message

Features:
Specification:
Samples:
Inquiry:

Features:

Pet Chewing Food takes starch from many kinds of different materials with scientific configurations and was extruded from a co-extruder, It can be made into different kinds of shapes such as stick, bone, bi-color, bi-flavor, twists, core-filling, etc.

This kind of food not only provide protein, fat, vitamin, and nutrition for dogs but also satisfy the dog nature hobby. It has the following features: strong teeth, a clean mouth, and teeth.

Pet Chewing Food Process Line 1.png

Advantages of Pet Chewing Food Process Line:

1. The extruder adopts advanced frequency converter speed regulation technology, making equipment strong power, more stable operation, and more electricity saving.
2. The screw adopts an alloy steel nitriding treatment, which longer life of the screw, and individual equipment adopts a building block combination structure, which can be arbitrarily combined according to different needs.
3. Visual automatic temperature control system, more intuitive temperature control, more accurate parameters.
4. Water cooling system, more accurate temperature control, better product molding.
5. New high strength Gearbox, made of QT400, good stability; oil filter and oil cooler to extend the life of the gearbox.

Work Flow of Pet Chewing Food Process Line:

Work Flow of Dog Chews Production Line.jpg

Specification:

Model	HX80	HX100
Installed Power	70kw	100kw
Power Consumption	50kw	70kw
Capacity	80kg/h	100-150kg/h
Dimension	34 × 2.0× 2.2m	42×2.0×2.2m

Samples:
