Pet Food Production Line

Food Machinery

Pet Food Processing Line

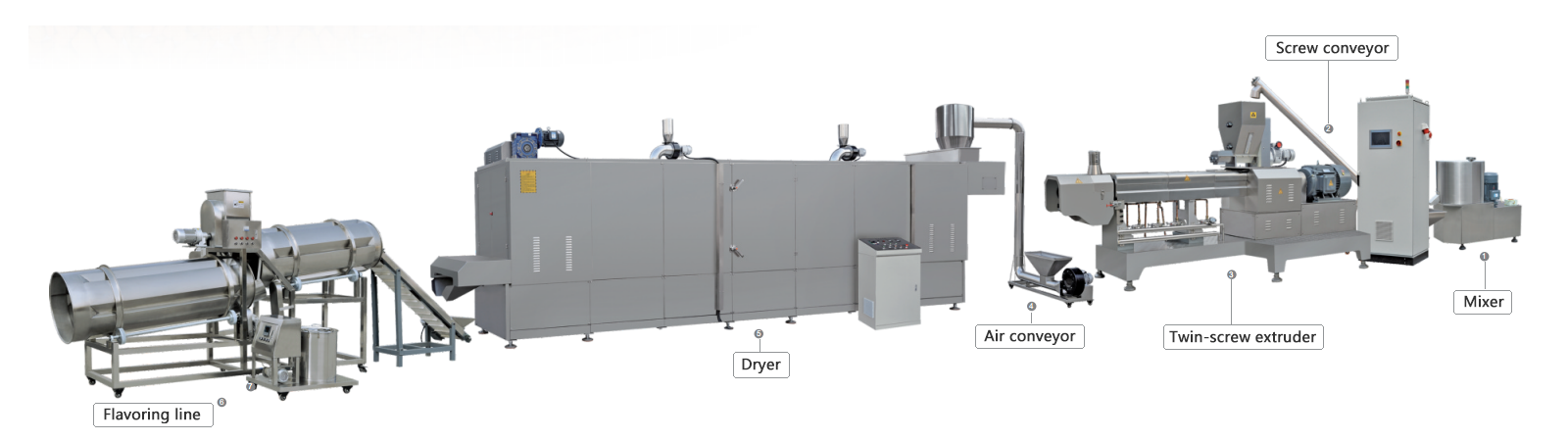

Pet Food Processing Line consists of:

1. Mixer
2. Screw elevator

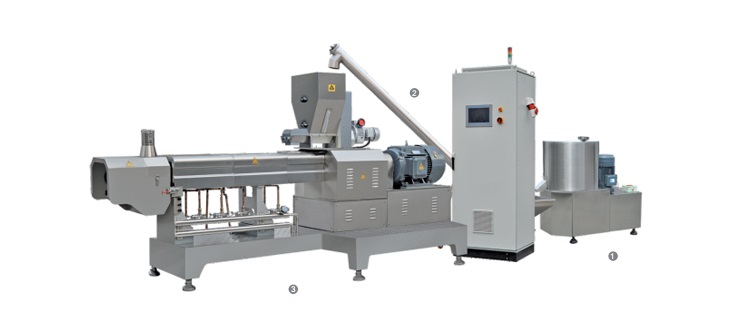

3. Twin screw extruder
4. Air blower

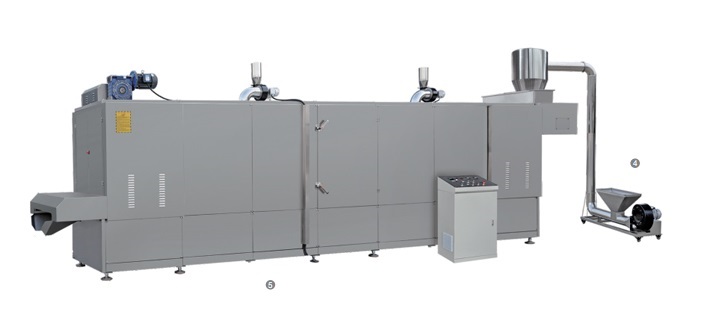

5. Oven/Dryer

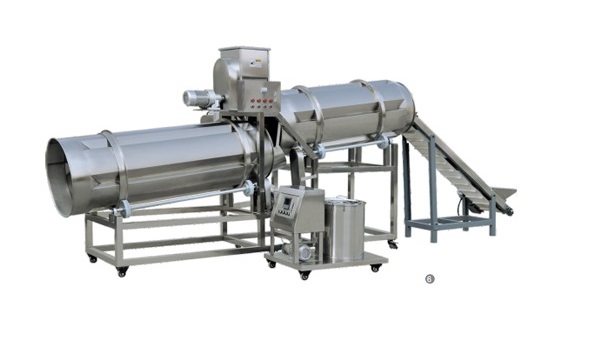

6. Flavoring line

Message

Features:
Specification:
Samples:
Inquiry:

Features:

Pet Food Processing Line mainly use maize, fish powder, meat powder, and some food additive as the main raw materials, through mixing, extruding, roasting, and flavoring to get the final puffed pet food.

Pet Food Processing Line has two types, one is a dry type canine food production line, and the other is a wet kind meals manufacturing plant, moist kind is equipped with a boiler that can continuously present hot steam.
It may produce all kinds of feeds and meals as manufacturing floating feeds for aqua, catfish, golden fish, shrimp, crab, loach, bullfrog, etc, and pet meals like dog meals, cat food and etc.

Pet Food Processing Line 0.png

Features of Pet Food Processing Line:

1). All pet food equipment is made of stainless steel. The reasonable design, special materials, and good stability.
2). The pet food whole line is fully continuous and automatic, with simple operation and accurate parameter control.
3). Basic pet food formulas will be provided according to your requirements.
4). The pet food shapes and sizes can be varied by changing the mold. The various shape and tastes also meet the different requirements of pets.
5). Packing machine could be supplied to work with the pet food production line (depending on your demand).

Raw materials of Pet Food Processing Line:

Corn flour, wheat flour, rice flour, fish powder, bone powder, fresh bone and meat paste, etc. Or using the corn feeds, rice feeds, and wheat feeds directly, then grinding. Another nutrient can be added together.

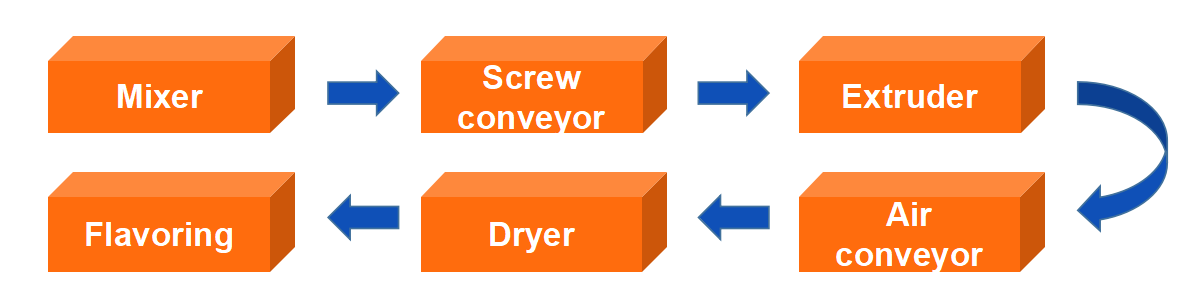

Flow Chart of Pet Food Processing Line:

Work Flow of Pet Food Processing Line.jpg

Specification:

Model	HX65	HX75	HX85
Installed Power	80kw	120kw	175kw
Power Consumption	55kw	90kw	125kw
Capacity	120-150kg/h	200-250kg/h	400-500kg/h
Dimension	18×1.3×2.2m	21×1.5×2.2m	26×1.5×3.5m

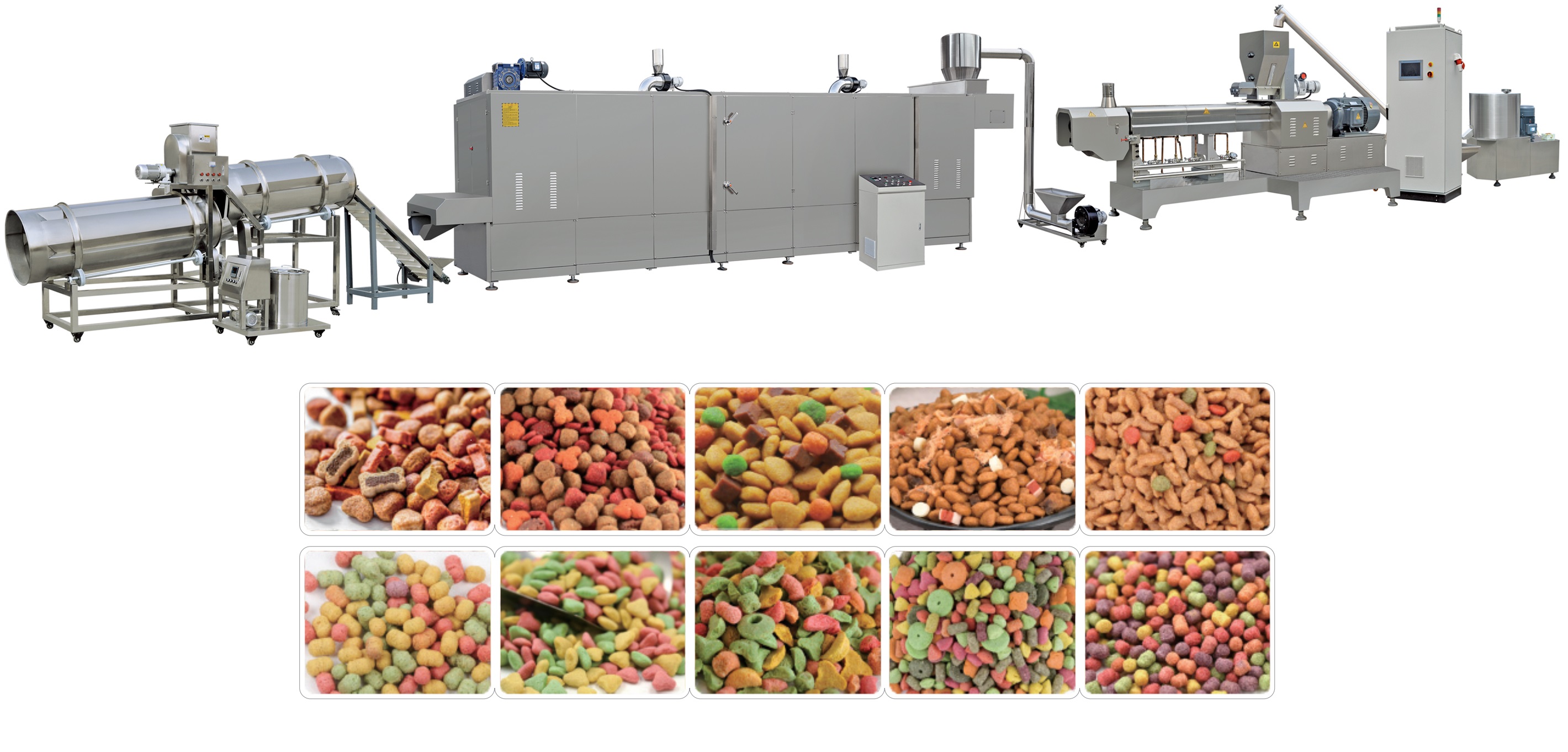

Samples:
