Large-scale Aquatic Feed Production Line

Food Machinery

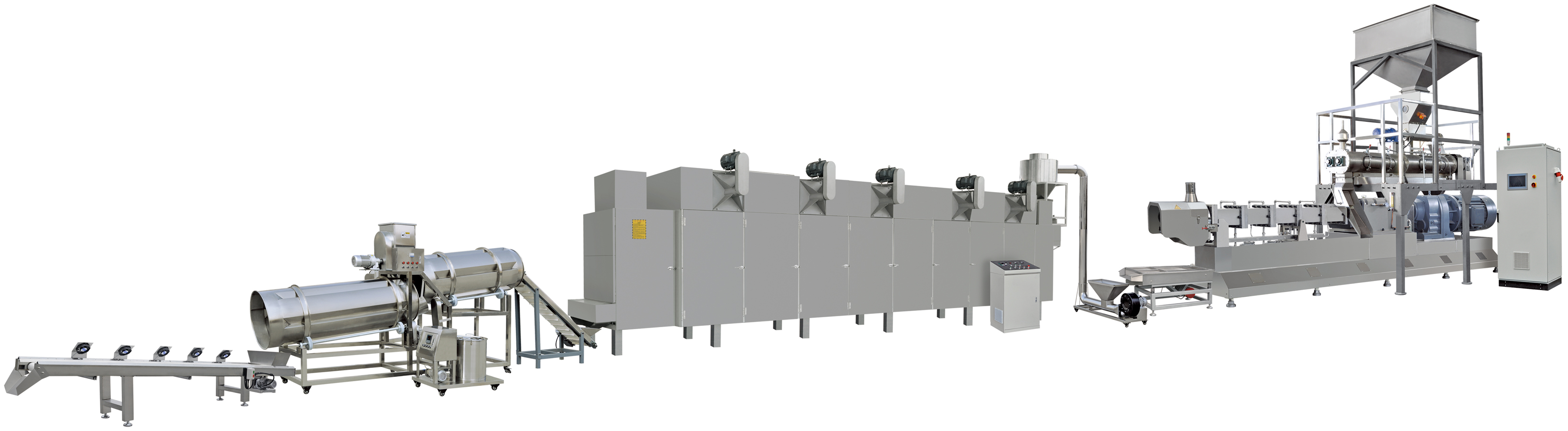

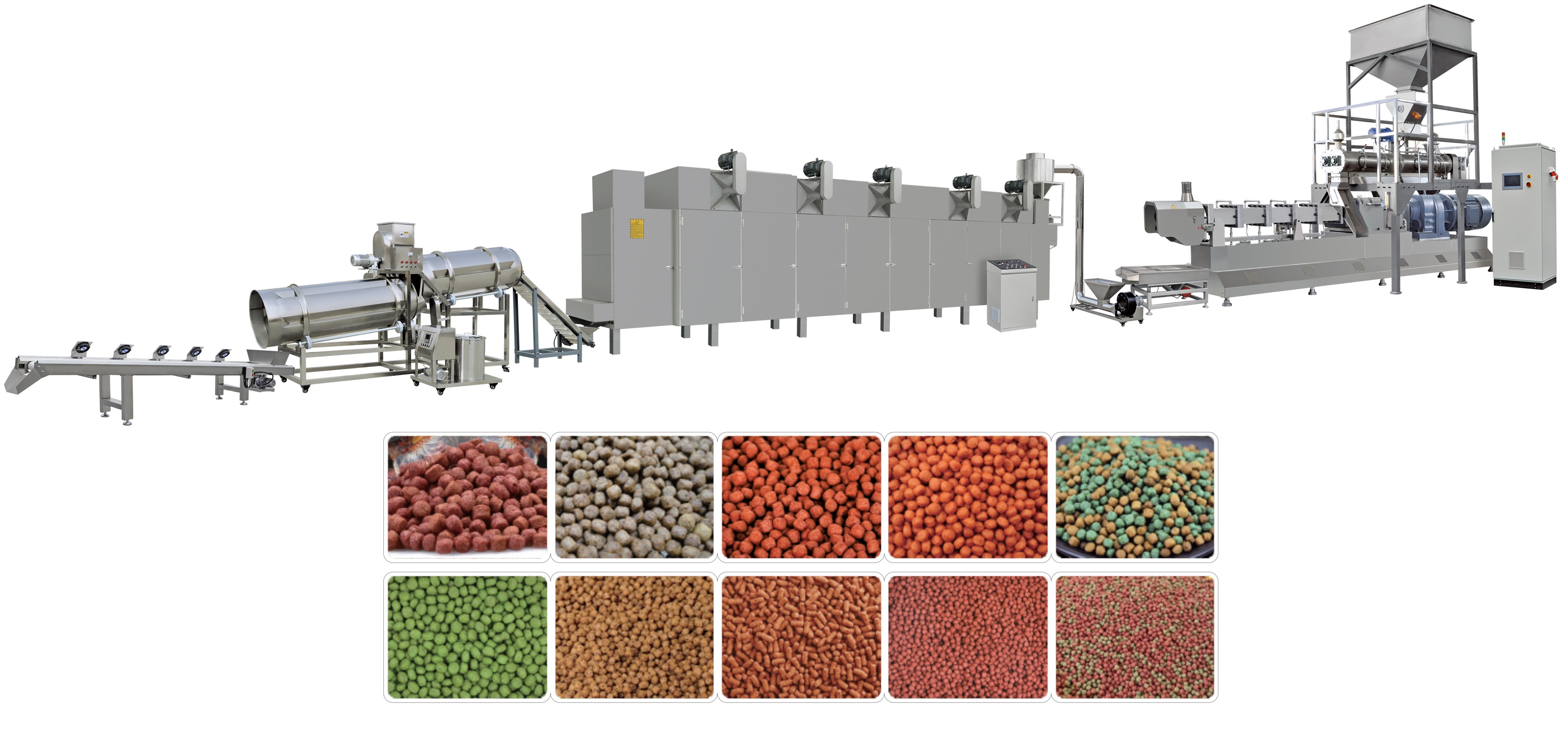

Floating fish feed Production Line

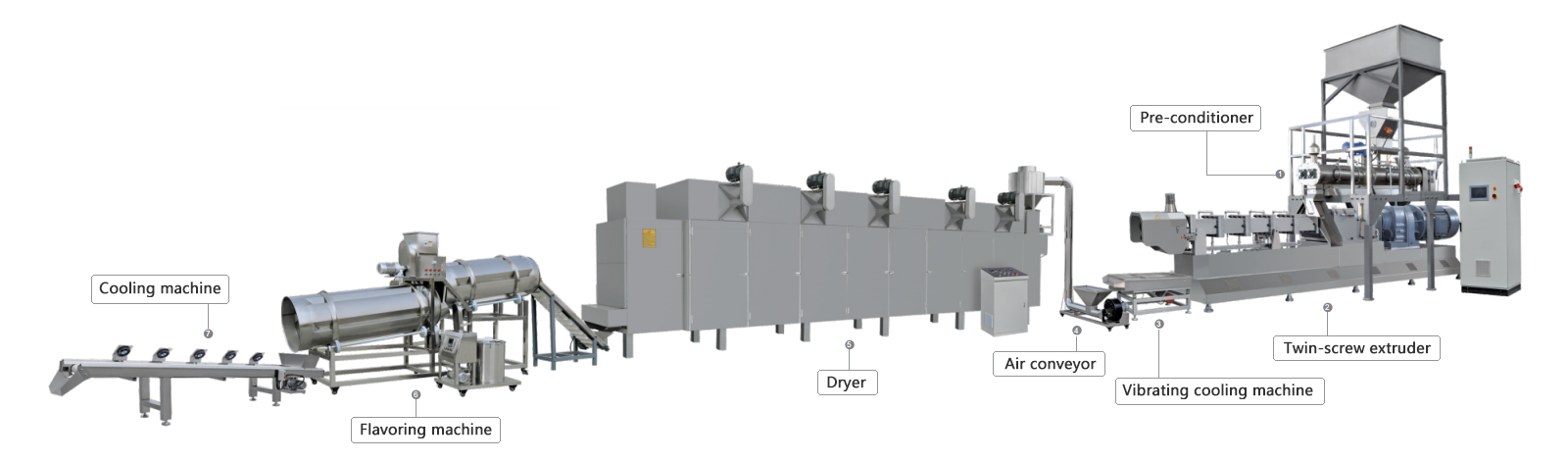

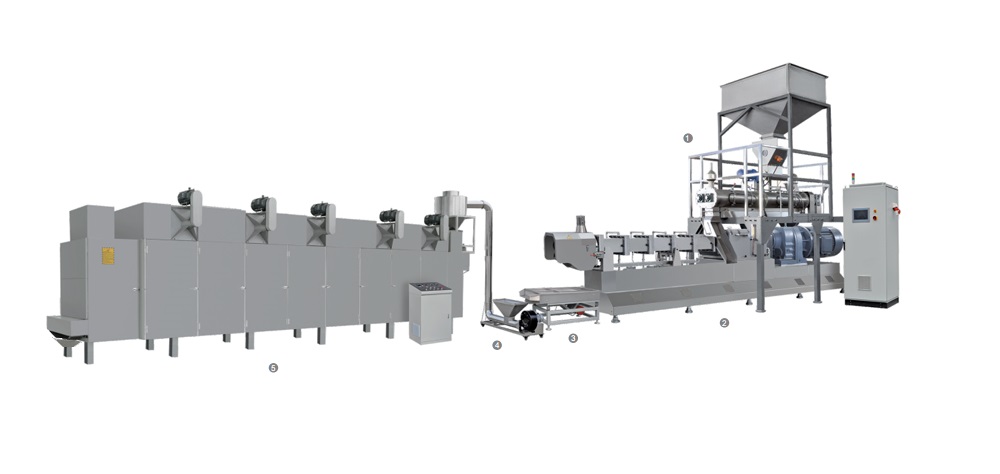

Floating fish feed Production Line consists of:

1. Modulator/Pre conditioner
2. Twin screw extruder
3. Vibrating cooling machine
4. Air blower
5. Oven/Dryer

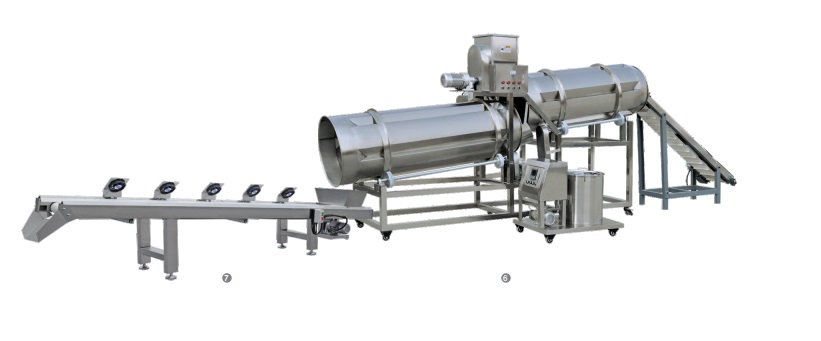

6. Automatic flavoring machine
7. Cooling machine

Message

Features:
Specification:
Samples:
Inquiry:

Features:

Feed Utilization: The extruded feed undergoes physical and chemical changes in the process, resulting in a powder production within a 1% margin. This directly improves the effective use of the feed.

Digestion & absorption: The high temperature and high-pressure conditions during processing effectively mature the starch in the feed, enhancing digestion and absorption. Additionally, the fiber structure and cell wall are broken down and softened, leading to improved palatability and digestibility of the feed.

Water quality: The extruded floating fish feed remains intact in water for an extended period without dissolving.

The observation regarding fish growth, feed requirement & feed intake habits

Wide range of feed size: The extruder die, under high pressure, temperature, and moisture conditions, allows for a wide range of feed sizes to be produced, ranging from 0.8 mm to 5 mm. This flexibility caters to the growth and species-specific needs of fish.

Floating fish feed Production Line can produce a premium quality special koi food, goldfish food, tropical fish food, dog food, cat food, as well as dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented from customers.

Features of Floating fish feed Production Line:

1). This production line adopts the steam method with high-efficiency driving, stability, and low noise.
2). It is also with Internationally advanced steam fittings and an imported pressure reduction valve.
3). Different types, flexible configurations, a wide range of raw materials, etc.
4). Easy operation, without leak of powder dust, sanitation, saving energy, and easy to add all kinds of raw materials and nutriment.

Raw materials of Floating fish feed Production Line:

Adopts corn flour, fish meal, bone meal, meat meal, soya bean powder, etc.

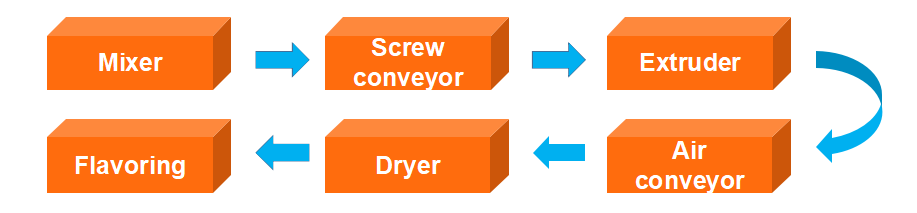

Work Flow of Floating fish feed Production Line:

Specification:

Model	HX85	HX95	HX130
Installed Power	110kw	165kw	280kw
Power Consumption	55kw	90kw	132kw
Capacity	500-800kg/h	1500-2000kg/h	2000-3000kg/h
Dimension	30 × 2.0 × 3.5m	40 × 3.5 × 4.5m	45 × 4.5 × 6.0m

Samples:
