Large-scale Aquatic Feed Production Line

Food Machinery

Fish Feed Processing Line

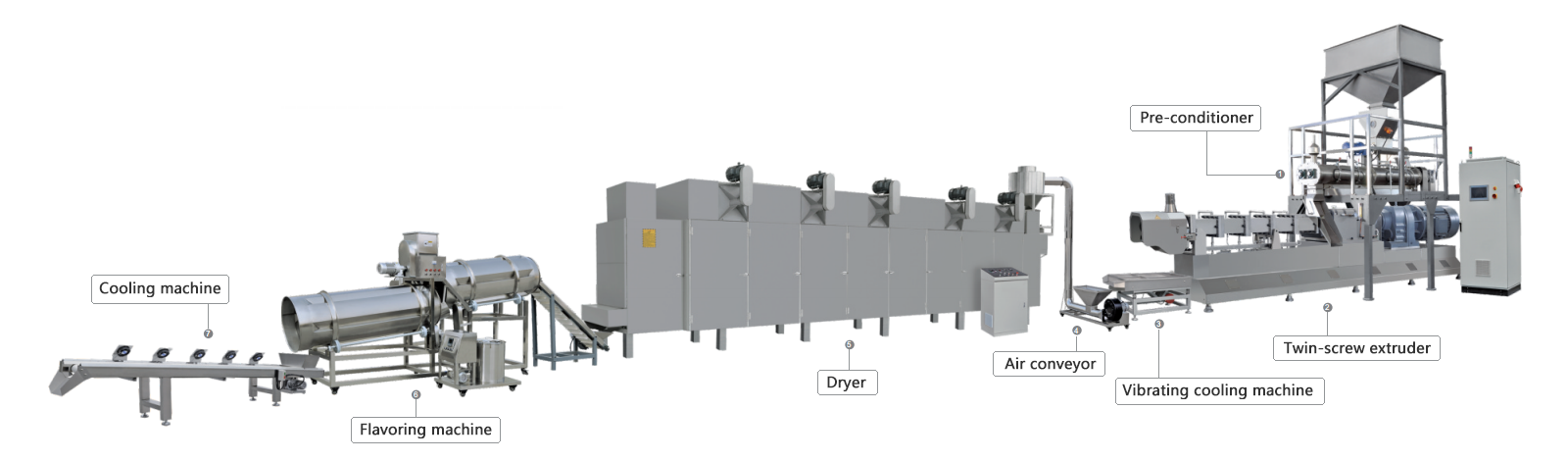

Fish Feed Processing Line consists of:

1. Modulator/Pre conditioner
2. Twin screw extruder
3. Vibrating cooling machine
4. Air blower
5. Oven/Dryer
6. Automatic flavoring machine
7. Cooling machine

Message

Features:
Specification:
Samples:
Inquiry:

Features:

Fish Feed Processing Line can produce premium quality special koi food, goldfish food, tropical fish food, dog food, cat food, as well as dog and monkey food. They all are sold at home and abroad and win high praise and favorably commented from customers.

Features of Fish Feed Processing Line:

1). This processing line adopts the steam method with high-efficiency driving, stability, and low noise.
2). It is also with Internationally advanced steam fittings and an imported pressure reduction valve.
3). Different types, flexible configurations, a wide range of raw materials, etc.
4). Easy operation, without leak of powder dust, sanitation, saving energy, and easy to add all kinds of raw materials and nutriment.

Raw materials of Fish Feed Processing Line:

Adopts corn flour, fish meal, bone meal, meat meal, soya bean powder, etc.

Final products of Fish Feed Processing Line:

Pet food, like fish, bird, dog, cat, etc. With different shapes and tastes by changing the dies, and formulations.

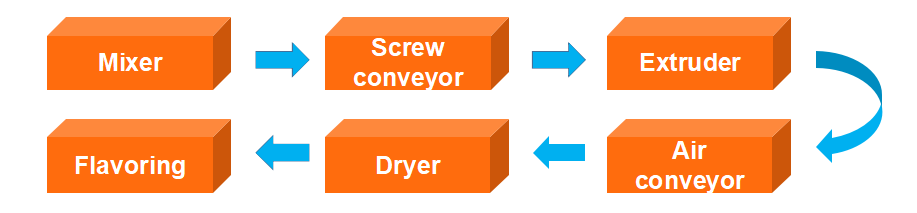

Work Flow of Fish Feed Processing Line:

Specification:

Model	HX85	HX95	HX130
Installed Power	110kw	165kw	280kw
Power Consumption	55kw	90kw	132kw
Capacity	500-800kg/h	1500-2000kg/h	2000-3000kg/h
Dimension	30 × 2.0 × 3.5m	40 × 3.5 × 4.5m	45 × 4.5 × 6.0m

Samples:
