3D Puffed Snack Food Production Line

Food Machinery

3D Pellet Snacks Making Machine

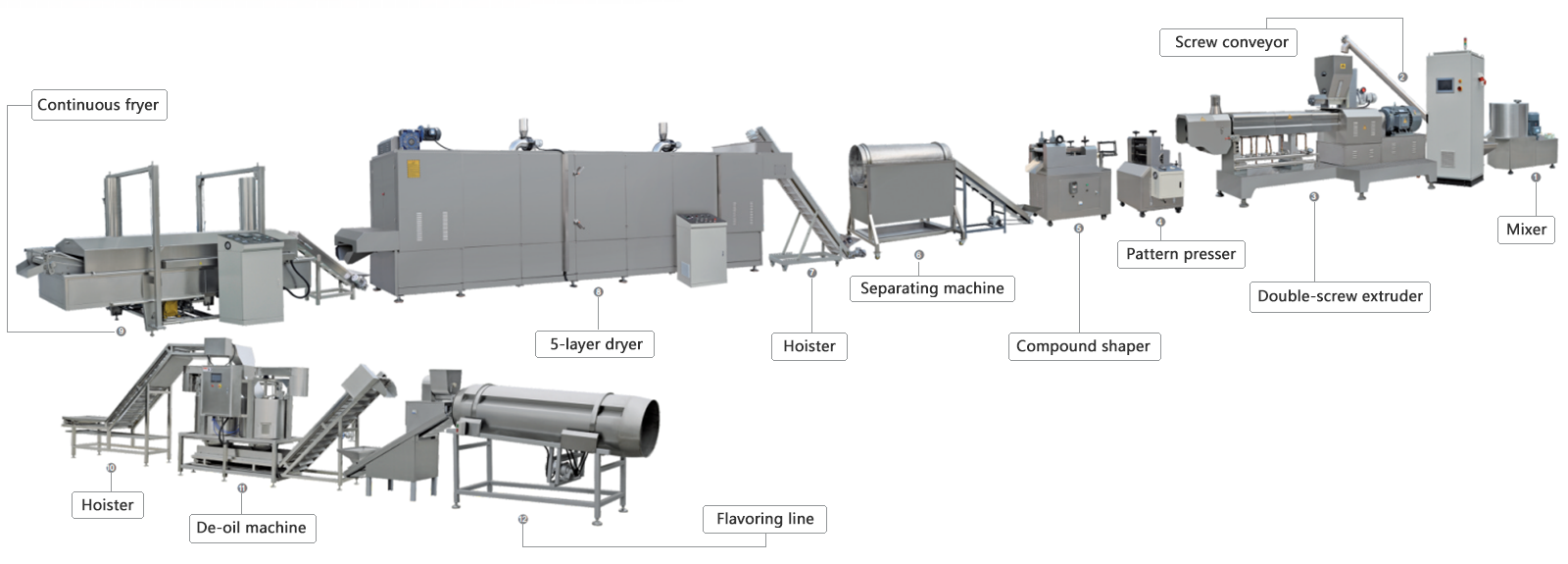

3D Pellet Snacks Making Machine consists of:

1. Mixer
2. Screw elevator
3. Twin screw host/Double screw extractor
4. Embossing machine/Pattern presser
5. Compound shaper
6. Separating machine
7. Hoist/Hoister
8. Oven/5-layer layer
9. Continuous fryer
10. Hoist/Hoister
11. Oil slinger/De oil machine
12. Automatic flavoring line

Message

Features:
Specification:
Samples:
Inquiry:

Features:

3D Pellet Snacks Making Machine uses wheat flour, corn flour, corn starch, tapioca starch, and potato starch as raw materials.

Cooking and cutting processes to produce spiral, tube, onion ring, waved chips, etc snack pellets. such as crisp peas, shells, screws, square tubes, round tubes, and waves. Also can equip with a pattern pressing machine and compound machine to produce bugles, net crispy, Pani puri, etc 3D snack pellets. Then by drying, frying, and flavoring, the snack pellet can be made to be crispy, vivid instant-eat twice extrusion puffed food.

3D Pellet Snacks Making Machine is characterized by unique technique, rational configuration, high automation, and stable performance. It can finish steaming, extrusion, and shaping in one step without a boiler. And combinations of the unit screw and precise control of processing, achieve higher quality and various products with more chosen for raw material.

Raw materials of 33D Pellet Snacks Making Machine:

Wheat flour, potato starch, potato flour, corn starch, cassava starch, etc.

Work Flow of 3D Pellet Snacks Making Machine:

Mixer--Extruder--Pulling Cutter-Compound Shaper--Roller Drum--Vibration Cooler--Hoister--Dryer--Fryer--Flavoring

3D Pellet Snacks Making Machine 0.png

Specification:

Model	HX65	HX70	HX85
Installed Power	75kw	135kw	240kw
Power Consumption	55kw	95kw	180kw
Capacity	120-200kg/h	200-300kg/h	400-500kg/h
Dimension	28 × 2.6 × 2.4m	36 × 3.5 ×3.0m	38 × 3.8 × 3.5m

Samples:
